White Box Testing in Software Engineering

White Box Testing in Software Engineering

White box testing isn’t just about knowing the internals of the system you’re testing. Pessimists argue it requires you to be both a skilled tester and a seasoned programmer—a high bar that discourages many.

Only relying on black box testing is like examining a car based on its exterior without ever looking under the hood. Sure, the argument is that it saves time while being easier to handle, but it’s dangerously incomplete. And Many assume white box testing is an overkill for small projects. The common belief is that the bigger the project, the more the need for white box testing—an approach that often leads to oversights in smaller projects.

What is white box testing in software engineering?

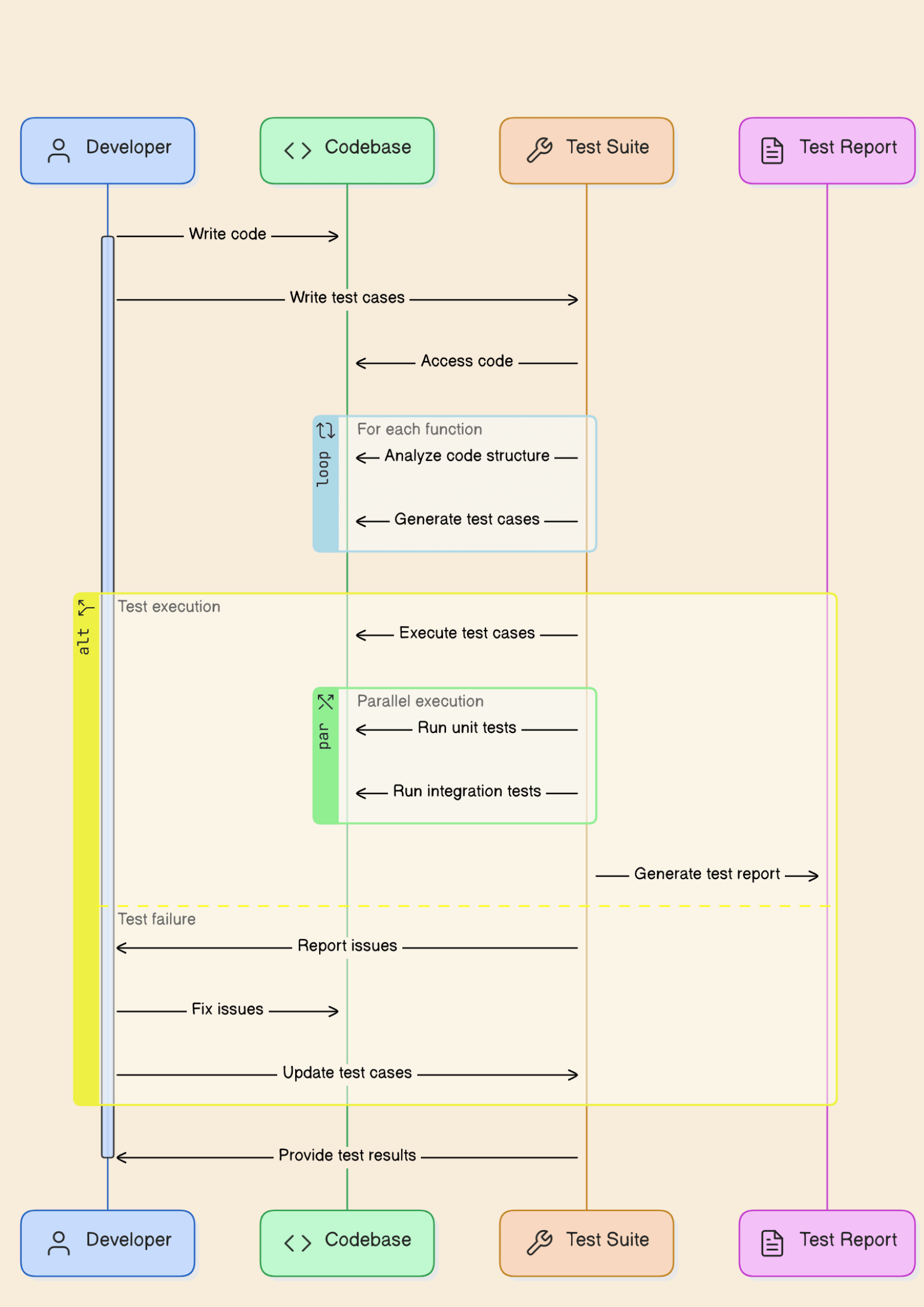

What is white box testing in software engineering?

White box testing, also known as structural, code-based, or glass box testing, is a software testing technique that focuses on examining the internal logic, structure, and coding of a software application. Unlike black box testing, which tests the software from an external or end-user perspective, white box testing involves a deep understanding of the source code and internal workings of the application.

Key Aspects of White Box Testing

Access to Source Code: Testers have complete access to the source code, design documents, and internal structures of the software. This allows them to create test cases that verify the correctness of the software at the code level.

Testing Techniques:

Statement Coverage: Ensures that every possible statement in the code is executed at least once during testing.
Branch Coverage: Ensures that every possible path (if-else and other conditional loops) in the code is tested.
Condition Coverage: Tests all individual conditions in the code.
Path Coverage: Ensures that all possible paths of code execution are explored.
Other Techniques: Include multiple condition coverage, finite state machine coverage, control flow testing, and data flow testing.

Types of White Box Testing

Unit Testing: Testing individual units or blocks of code to ensure they work correctly.
Integration Testing: Verifying that different components of the application work together as expected.
Security Testing: Identifying vulnerabilities in the code to prevent security breaches.
Penetration Testing: Simulating attacks to find security weaknesses.
Mutation Testing: Modifying the code to check if the existing test cases can detect the changes.

Advantages of white box testing in software engineering

Advantages of white box testing in software engineering

Thorough Testing: Provides complete code coverage, ensuring every part of the software’s internal structure is tested.
Early Bug Detection: Bugs can be detected early in the development process, making them cheaper and easier to fix.
Code Optimization: Helps in identifying hidden errors, redundant code, and performance issues, leading to optimized code.
Security: Uncovers security vulnerabilities by examining the internal structure of the software.

Disadvantages of white box testing in software engineering

Complexity: Requires a detailed understanding of the code and programming languages, making it complex and time-consuming.
Bias in Testing: Testers familiar with the code may have a biased view, potentially missing external issues.
Inability to Detect Missing Functionalities: Since it focuses on existing code, it may not detect missing functionalities.

call to action

Process of White Box Testing

Understanding the Source Code: Testers must thoroughly understand the source code and the programming languages used.
Creating Test Cases: Testers design test cases to cover all code paths, logic flows, and conditions.
Executing Tests: Test cases are executed, and the results are analyzed to identify and fix defects

The Misconception of Skill Barriers

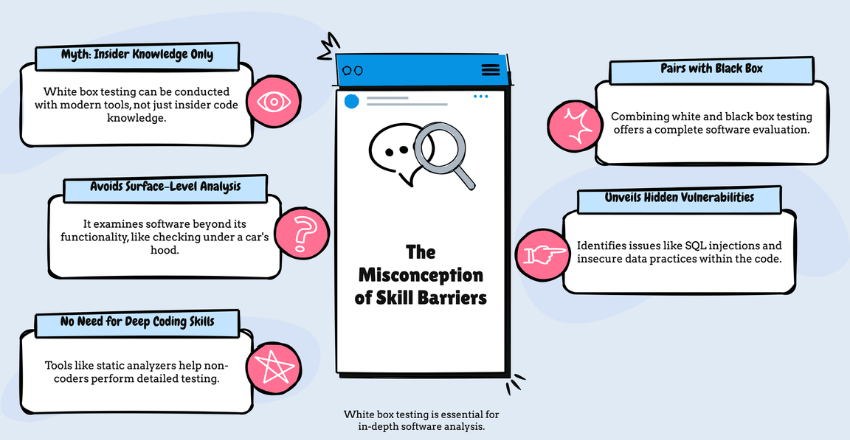

The Misconception of Skill Barriers

Let’s debunk some myths and misconceptions. White box testing isn’t just about having insider knowledge of the system. It’s a robust methodology that, when combined with black box testing, provides a comprehensive evaluation of software. Neglecting white box testing is like assessing a car’s quality by only looking at its exterior without ever peeking under the hood. It may save time and seem simpler, but it’s dangerously incomplete.

Consider a situation where you’re tasked with ensuring the security of a banking app. Black box testing might reveal whether the app functions correctly from the user’s perspective, but white box testing allows you to scrutinize the code for vulnerabilities, such as SQL injection points or insecure data handling. This doesn’t mean every tester must be a coder. Modern tools like static code analyzers and automated test frameworks bridge this gap, enabling thorough testing without deep programming knowledge.

Debunking the ‘Overkill for Small Projects’ Myth

Another myth is that white box testing is overkill for small projects. This mindset often leads to critical oversights. Whether you’re developing a small mobile app or a large enterprise system, the principles of white box testing apply universally. In fact, smaller projects can benefit immensely from early detection of potential issues that could escalate into bigger problems if left unchecked.

Take, for example, a small e-commerce website. Ignoring white box testing might leave you blind to performance bottlenecks or security flaws that could cripple the site during high traffic periods. By integrating white box testing from the start, you ensure a smoother, more reliable user experience, which is crucial for maintaining customer trust and satisfaction.

The Synergy of Black Box and White Box Testing

Having led several market-leading software projects, I’ve learned that coupling black box testing with white box testing streamlines the process and results in superior software quality. Black box testing focuses on the functional aspect—ensuring the software behaves as expected under various conditions. Meanwhile, white box testing dives deep into the code, checking for logic errors, ensuring all paths are tested, and validating internal structures.

Imagine developing a health tracking app. Black box testing will verify that users can log their data, view reports, and receive notifications. But white box testing will ensure that the algorithms calculating calorie burn or sleep cycles are accurate and efficient. This dual approach ensures both the functionality and the reliability of the software, ultimately delivering a better product to the end-users.

Accelerate your Development


Health Tracking App

Consider a health tracking app that monitors users’ physical activities and sleep patterns. The black box testing phase ensures that:

  • Users can log their daily activities without issues.
  • Data visualization, like charts and graphs, display accurately.
  • Notifications and reminders are sent promptly.

Here’s a simple example of a black box test case for verifying user login functionality using Selenium WebDriver for a web-based health tracking app:

from selenium import webdriver
import unittest

class HealthAppLoginTest(unittest.TestCase):

def setUp(self):
self.driver = webdriver.Chrome()

def test_login(self):
driver = self.driver
username = driver.find_element_by_name("username")
password = driver.find_element_by_name("password")
login_button = driver.find_element_by_id("loginButton")


self.assertIn("Welcome, testuser", driver.page_source)

def tearDown(self):

if __name__ == "__main__":

In contrast, white box testing ensures the underlying algorithms are correct and optimized. For example, the algorithm calculating calorie burn needs to be accurate, taking into account the user’s weight, activity level, and duration. Here’s a snippet of a white box test using JUnit to ensure the accuracy of the calorie calculation algorithm:

import org.junit.Test;
import static org.junit.Assert.assertEquals;

public class CalorieCalculatorTest {

public void testCalorieBurn() {
CalorieCalculator calculator = new CalorieCalculator();
double caloriesBurned = calculator.calculate(70, "running", 30);
assertEquals(420, caloriesBurned, 0.1); // Assuming the expected value is 420 calories

E-Commerce Platform

In another instance, consider an e-commerce platform. Black box testing ensures:

  • Customers can browse products, add items to the cart, and checkout seamlessly.
  • Payment processing works correctly across various methods.
  • Confirmation emails are sent after successful transactions.

Here’s a black box test case example using Selenium for the checkout process:

from selenium import webdriver
import unittest

class ECommerceCheckoutTest(unittest.TestCase):

def setUp(self):
self.driver = webdriver.Chrome()

def test_checkout(self):
driver = self.driver

self.assertIn("Thank you for your purchase", driver.page_source)

def tearDown(self):

if __name__ == "__main__":

On the white box side, you’d focus on ensuring the integrity and performance of the database queries involved in the checkout process. This might involve testing SQL queries to ensure they are optimized and secure from SQL injection attacks.

Here’s an example of a unit test for a database query using JUnit and a mock database:

import static org.mockito.Mockito.*;
import org.junit.Before;
import org.junit.Test;
import org.mockito.*;

public class OrderRepositoryTest {

private DataSource dataSource;

private OrderRepository orderRepository;

public void setUp() {

public void testPlaceOrder() throws Exception {
Connection mockConnection = mock(Connection.class);
PreparedStatement mockStatement = mock(PreparedStatement.class);


Order order = new Order(1, "laptop", 1, 1000.0);
boolean result = orderRepository.placeOrder(order);

verify(mockStatement, times(1)).setInt(1, order.getProductId());
verify(mockStatement, times(1)).setInt(2, order.getQuantity());
verify(mockStatement, times(1)).setDouble(3, order.getPrice());
verify(mockStatement, times(1)).executeUpdate();


Financial Software

Lastly, let’s look at a financial software application where precision and security are paramount. Black box testing ensures:

  • Users can perform transactions without errors.
  • Account balances update correctly.
  • Reports generate accurate summaries of financial activities.

A black box test case for verifying transaction functionality might look like this:

from selenium import webdriver
import unittest

class FinancialAppTransactionTest(unittest.TestCase):

def setUp(self):
self.driver = webdriver.Chrome()

def test_transaction(self):
driver = self.driver

self.assertIn("Transaction Successful", driver.page_source)

def tearDown(self):

if __name__ == "__main__":

White box testing in this context would involve ensuring the financial calculations and transaction handling are accurate and secure. For example, a unit test to validate transaction handling might be:

import org.junit.Test;
import static org.junit.Assert.assertEquals;

public class TransactionTest {

public void testTransaction() {
Account account = new Account("user", 5000.0);
Transaction transaction = new Transaction(account, 1000.0, "recipientUser");


assertEquals(4000.0, account.getBalance(), 0.1);

Tools and Strategies for Effective White Box Testing

You might wonder how to implement white box testing without getting bogged down in code. Here are some strategies and tools that make white box testing accessible and effective:

Automated Testing Tools

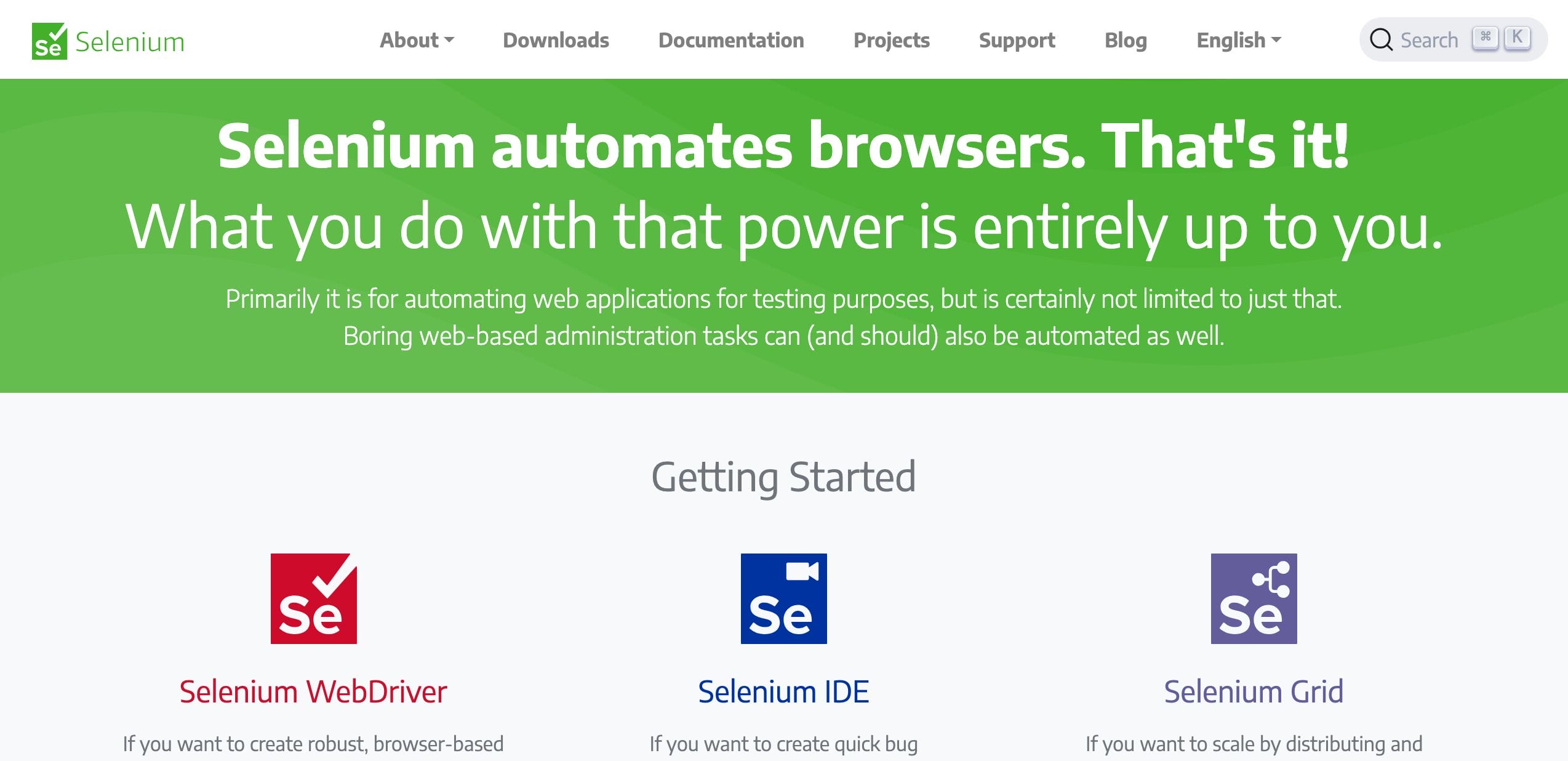

Tools like Selenium for automated web application testing and JUnit for Java applications are invaluable.


These tools allow testers to write automated test scripts that can be run repeatedly, ensuring consistent coverage and catching regressions early.

import org.junit.Test;
import static org.junit.Assert.assertEquals;

public class CalculatorTest {
public void testAddition() {
Calculator calc = new Calculator();
int result = calc.add(10, 20);
assertEquals(30, result);

This simple test case checks the addition functionality of a calculator class. The power of such tools lies in their ability to automate repetitive tasks, freeing up testers to focus on more complex scenarios.

Static Code Analysis

Static code analysis tools, such as SonarQube and ESLint, analyze your code for potential issues without executing it. These tools can detect vulnerabilities, code smells, and adherence to coding standards, ensuring high code quality.

// Sample ESLint configuration
"env": {
"browser": true,
"es6": true
"extends": "eslint:recommended",
"rules": {
"indent": [
"linebreak-style": [
"quotes": [
"semi": [

By integrating static code analysis into your development pipeline, you catch issues early, improving overall code quality and maintainability.


In my experience, one of the most compelling cases for white box testing is its role in ensuring security. For instance, in a fintech project I led, we implemented white box testing to scrutinize the code for security vulnerabilities. This proactive approach helped us identify and fix potential security issues before they became exploits.

Another example comes from the healthcare industry, where accuracy is paramount. In a project involving a medical device’s software, white box testing ensured the algorithms used for data analysis were precise and reliable. This level of scrutiny not only enhanced the product’s quality but also built trust with stakeholders, knowing that every line of code was meticulously tested.

Final Thoughts

White box testing, when done right, is invaluable for both small and large projects alike. By dispelling the myths surrounding its complexity and necessity, we can embrace a more holistic approach to software testing. Combining black box and white box testing ensures thorough coverage, higher quality, and ultimately, more reliable software.

Don’t let misconceptions hold you back. Leverage modern tools and automation to make white box testing an integral part of your development process. The result? Robust, secure, and high-performing software that stands the test of time.
