Introduction to CQRS in .net core

Traditional design patterns are still a prevalent choice when it comes to .NET Core.

Yet, they often lead to unnecessarily complex, monolithic architectures that confound developers and stunt scalability.

Having spent years navigating this challenge, I’ve discovered the alternative: CQRS, a design pattern that brings clarity and flexibility without sacrificing robustness.

So, what exactly is CQRS? How does it differ from traditional approaches? And how can it be implemented effectively in .NET Core?

What is CQRS?

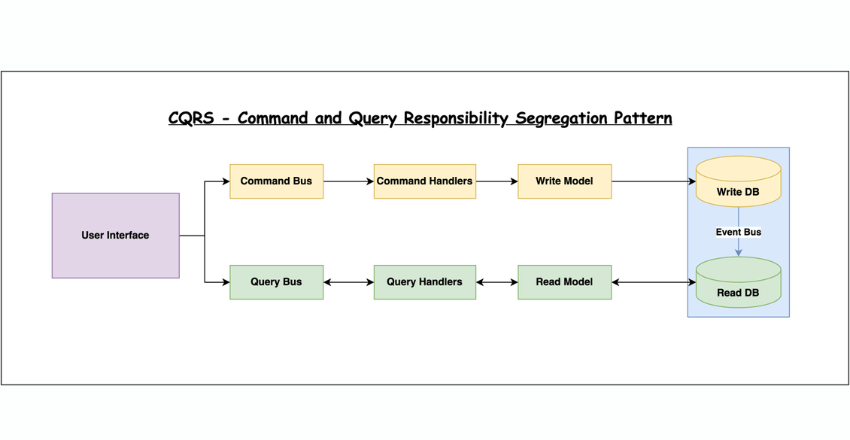

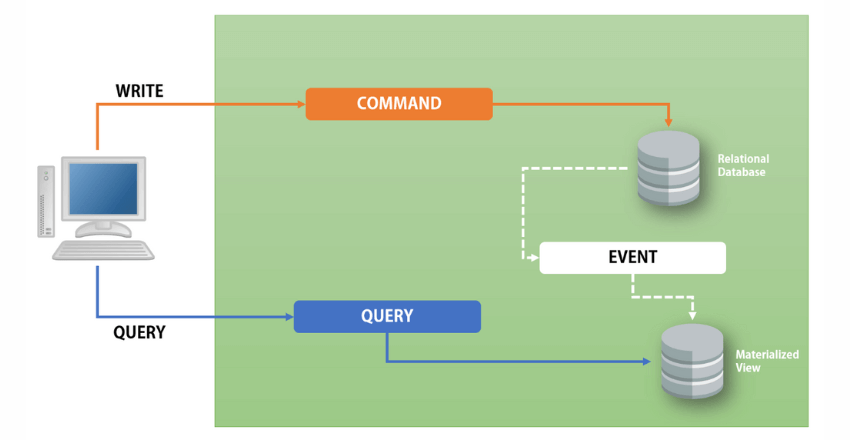

CQRS (Command and Query Responsibility Segregation) is a software architectural pattern that separates the responsibility of handling read and write operations in an application. Unlike traditional approaches, which combine both read and write operations in a single interface, CQRS advocates for separating these concerns to improve scalability, performance, and maintainability.

In a CQRS architecture, commands represent the operations that modify the state of the system, while queries represent the operations that retrieve data. By decoupling the handling of commands and queries, CQRS allows for independent scaling of read and write operations, resulting in improved performance and better utilization of resources.

The Basic Principles of CQRS

1. Separation of concerns: CQRS encourages the separation of read and write operations, ensuring a clear and distinct responsibility for each.
2. Command-based operations: Commands handle write operations and represent intent to modify the system’s state. They encapsulate requests to update data and are processed by command handlers.
3. Query-based operations: Queries handle read operations and retrieve data from the system. They are executed against a read model that is optimized for reading data efficiently.
4. Event-driven architecture: Event-driven architecture is often used in conjunction with CQRS to propagate changes in the system and update read models asynchronously.

Implementing CQRS in an application requires careful consideration and understanding of the underlying principles. By adhering to these principles, developers can design systems that are more scalable, maintainable, and performant.

CQRS in .net core

Implementing CQRS in .net core enables developers to leverage its specific features and tools effectively. .net core provides a robust framework that empowers developers to build scalable and high-performing applications using the CQRS architecture pattern.

One of the key features of .net core for implementing CQRS is the support for asynchronous programming. With async/await keywords and the Task-based Asynchronous Pattern (TAP), developers can easily handle long-running operations without blocking the main thread, resulting in improved application responsiveness and scalability.

.net core also provides a rich set of libraries and frameworks that facilitate CQRS implementation. The popular CQRS frameworks like MediatR and NServiceBus simplify the development process by abstracting away the complexities of message handling and routing. These frameworks allow developers to focus on defining command and query handlers, streamlining the development workflow.

Example: Using MediatR Framework

The MediatR framework provides a simple and elegant way to implement CQRS in .net core.

1. Create command and query objects that encapsulate the request data.
2. Define separate command and query handlers that handle the corresponding requests.
3. Configure dependency injection to inject the appropriate handlers when a command or query is executed.
4. Use MediatR’s Send method to send commands and queries to the appropriate handlers.

This example demonstrates the ease of implementing CQRS using the MediatR framework in .net core.

Additionally, the use of database technologies like EventStore or Apache Kafka in conjunction with .net core allows for efficient event sourcing and event-driven architectures. These technologies enable capturing and storing events, facilitating synchronization between different components of a CQRS-based system.

By leveraging the power of .net core, developers can implement CQRS in a way that maximizes code reuse, promotes separation of concerns, and improves scalability and performance. With the right tools and frameworks, building CQRS-based applications in .net core becomes a seamless and efficient process.

Command and Query Objects

In CQRS, command and query objects play a crucial role in separating the write and read operations of an application. These objects encapsulate the information and actions related to executing commands and fetching data respectively.

Command objects represent the intent to change the state of the application by performing write operations. They contain the necessary data and behavior required to execute a specific command. Command objects are typically used to encapsulate user actions, such as creating a new record, updating an existing record, or deleting data.

For example, consider a command object for creating a new user in an application:

```csharp
public class CreateUserCommand
{
public string Name { get; set; }
public string Email { get; set; }
// Other properties and methods
}
```

Query objects on the other hand, are used to retrieve data from the application without modifying its state. They encapsulate the necessary data and behavior to execute a specific query and return the requested information. Query objects help in maintaining a clear separation between write and read operations, enabling efficient querying and data retrieval.

Here’s an example of a query object for retrieving a list of users:

```csharp
public class GetUsersQuery
{
public int PageNumber { get; set; }
public int PageSize { get; set; }
// Other properties and methods
}
```

By utilizing command and query objects, developers can effectively segregate the write and read operations in an application. This separation enhances the clarity of code and improves maintainability, as it becomes easier to understand and reason about specific actions and data retrieval.

The use of command and query objects also contributes to the extensibility and scalability of the application. As the application grows in complexity, new commands and queries can be easily added, utilizing the existing objects or creating new ones as required.

Overall, command and query objects are essential components of a CQRS architecture, enabling a clear separation of concerns and facilitating robust and scalable applications.

Event Sourcing

In the context of Command and Query Responsibility Segregation (CQRS), event sourcing is a powerful technique that allows applications to store and retrieve data in a more flexible and scalable manner. Unlike traditional approaches where the current state of an entity is stored directly in a database, event sourcing focuses on capturing and persisting the series of events that have occurred to arrive at the current state.

Each event represents a specific action or change in the application’s domain, such as a user creating a new order or an item being added to a shopping cart. These events are then stored in a durable event store, ensuring that they are preserved and can be used to recreate the state of the application at any point in time.

By storing events instead of the current state, event sourcing allows for greater flexibility and extensibility. It becomes easier to implement new features or modify existing ones, as the application can replay past events to rebuild the state with the updated logic. This makes it particularly useful in domains where data changes frequently or there are complex business rules that evolve over time.

To illustrate how event sourcing works in practice, consider the example of an e-commerce application. Instead of directly updating the shopping cart with each user action, such as adding or removing items, the application would generate and store events for each of these actions. These events can then be used to reconstruct the current state of the shopping cart, including all the items and their associated quantities.

Event sourcing provides additional benefits beyond data storage. It enables easy integration with other services and systems, as events can be published and consumed by different parts of an application or even external systems. This allows for real-time updates and collaboration among different components, making it an ideal approach for building event-driven architectures.

Overall, event sourcing is a powerful technique that can greatly enhance the flexibility, scalability, and maintainability of applications built using CQRS. By capturing and persisting events, it allows for a complete audit trail, easy extensibility, and seamless integration with other services. Let’s explore a code example to better understand how event sourcing can be implemented in practice.

Event-driven Architecture

Event-driven architecture (EDA) is a powerful approach that can enhance the effectiveness of an application when combined with the Command and Query Responsibility Segregation (CQRS) pattern. By leveraging events to trigger actions and update data, EDA provides a scalable and loosely coupled architecture that enables real-time responsiveness and flexibility.

When implementing EDA in conjunction with CQRS, events play a crucial role in communicating changes within the system. Instead of directly updating the data store, events are emitted when a write operation occurs, capturing the state changes as discrete entities. These events are then stored in an event log or message broker, allowing them to be consumed by interested components or services.

One of the key advantages of using an event-driven architecture is its ability to decouple different parts of the system. With EDA, components can react to events asynchronously, enabling them to operate independently and ensuring that updates occur in a distributed manner.

Let’s take a look at a code example to illustrate how event-driven architecture can be implemented in a CQRS system:

public class OrderService
{ private readonly IEventBus _eventBus; // Constructor injection of the event bus
public OrderService(IEventBus eventBus)

{ _eventBus = eventBus; } public void PlaceOrder(Order order)

{ // Place order logic // ... // Emit a "OrderPlaced" event var orderPlacedEvent =
new OrderPlacedEvent(order.Id); _eventBus.Publish(orderPlacedEvent); } }

In the code example above, the OrderService class emits an OrderPlacedEvent when a new order is placed. This event can then be consumed by other services or components to perform any necessary actions, such as sending notifications or updating inventory.

By embracing event-driven architecture in combination with CQRS, developers can design flexible and scalable systems that can adapt to changing requirements and handle a high volume of events. However, it’s important to carefully orchestrate and manage events to maintain data consistency and ensure the smooth operation of the application.

Command and Query Handlers

In the realm of CQRS (Command and Query Responsibility Segregation), command handlers and query handlers play a vital role in processing and managing commands and queries within an application. These handlers serve as the bridge between the presentation layer and the underlying services or domain models.

Command handlers are responsible for executing commands, which represent actions or intent to change the state of the application. They receive commands from the presentation layer and orchestrate the necessary operations to fulfill the command’s purpose.

For example, in an e-commerce application, a command handler may process a “create order” command by validating the order details, updating the inventory, and persisting the order to the database.

On the other hand, query handlers handle read requests and retrieve data from the application’s data store or other data sources. Queries represent requests for information or data retrieval.

For instance, in a social media application, a query handler might handle a request to fetch a user’s profile information by querying the user database and returning the relevant data.

To illustrate the implementation of command and query handlers in CQRS, consider the following code examples:

CreateOrderCommandHandler.cs

public class CreateOrderCommandHandler { private readonly IOrderService _orderService; public CreateOrderCommandHandler(IOrderService orderService) { _orderService = orderService; } public void Handle(CreateOrderCommand command) { // Validate command and perform necessary operations _orderService.CreateOrder(command); } }

GetUserProfileQueryHandler.cs

public class GetUserProfileQueryHandler {
private readonly IUserService _userService; public GetUserProfileQueryHandler
(IUserService userService) { _userService = userService; }
public UserProfileResult Handle(GetUserProfileQuery query)
{ // Retrieve user profile data from the database var userProfile =
 _userService.GetUserProfile(query.UserId);
// Map and return the result return MapToUserProfileResult(userProfile); } }

In these examples, the command handler receives a specific command object (such as “CreateOrderCommand”) and delegates the execution to the appropriate service or domain model. Similarly, the query handler receives a query object (like “GetUserProfileQuery”) and retrieves the required data using the corresponding service or repository.

By implementing command and query handlers, developers can achieve a clear separation of concerns and enforce single responsibility for each handler. This promotes better maintainability, testability, and extensibility of the application. Additionally, employing these handlers allows for future scalability and the ability to add new commands or queries without impacting existing code.

Having command and query handlers in place establishes a robust foundation for building CQRS-based applications, enabling developers to handle complex logic and ensure efficient data management.

Event Handlers

In the context of CQRS (Command and Query Responsibility Segregation), event handlers play a crucial role in reacting to events and updating the application’s state. An event handler is responsible for executing specific actions in response to events that occur within the system. By effectively utilizing event handlers, developers can keep the application’s state up to date and ensure that the required business logic is executed accurately.

When an event is raised, the corresponding event handler is triggered to perform the necessary operations based on the event’s information. Event handlers can process events asynchronously, allowing the application to continue handling additional events while the current event is being processed. This asynchronous processing can significantly improve the overall responsiveness and scalability of the application.

“Event handlers are instrumental in implementing the reactive nature of an application. They enable developers to respond to different events, such as user interactions or system notifications, and update the application’s state accordingly.”

To illustrate the concept of event handlers in CQRS, let’s consider an e-commerce application. Whenever a user places an order, an OrderPlacedEvent is raised. The associated event handler would then update the inventory, send order confirmation emails, and perform any other necessary actions to reflect the changes brought about by the order placement.

Here’s an example of how an event handler can be implemented in CQRS using .net core and C#:

```csharp
public class OrderPlacedEventHandler : IEventHandler

{
private readonly IInventoryService _inventoryService;
private readonly IEmailService _emailService;

public OrderPlacedEventHandler(IInventoryService inventoryService, IEmailService emailService)
{
_inventoryService = inventoryService;
_emailService = emailService;
}

public async Task Handle(OrderPlacedEvent @event)
{
// Update inventory
await _inventoryService.UpdateInventoryAsync(@event.ProductId, @event.Quantity);

// Send order confirmation email
await _emailService.SendOrderConfirmationEmailAsync(@event.UserId, @event.OrderId);
}
}
```

In this example, the OrderPlacedEventHandler class implements the IEventHandler<TEvent> interface, specifying that it handles the OrderPlacedEvent. The class has dependencies on an IInventoryService and an IEmailService, which are injected through the constructor.

Inside the Handle method, the event handler can perform the necessary actions to update the inventory and send the order confirmation email, utilizing the injected services. The event handler’s logic can be extended to include additional operations as needed to meet the specific requirements of the application.

By utilizing event handlers in CQRS, developers can build highly responsive and scalable applications that react to events in a reactive and efficient manner. Event handlers enable the seamless update of the application’s state, ensuring that it accurately reflects the changes brought about by various events within the system.

CQRS Patterns and Best Practices

When implementing CQRS in .net core, it is important to follow certain patterns and best practices to ensure scalability, data consistency, and efficient error handling. By incorporating these guidelines, developers can effectively harness the power of CQRS and build robust applications. Below are some key patterns and practices to consider:

1. Separate Command and Query Models

One of the fundamental principles of CQRS is the separation of command and query models. **Command objects** are responsible for handling write operations, such as creating or updating data, while **query objects** are used for retrieving data. By segregating these operations, developers can optimize their code for better performance and maintainability.

2. Event Sourcing for Data Management

Event sourcing is a powerful technique that complements CQRS by storing and retrieving data as a series of events. With event sourcing, every change to the application’s state is captured as an event, allowing for easy tracking and reconstruction of data. By implementing **event sourcing**, developers can achieve a more flexible and scalable data management approach.

3. Implement Event-Driven Architecture

Event-driven architecture (EDA) is a natural fit for CQRS applications, as it allows for loose coupling and efficient communication between different components. By using events to trigger actions and update the application’s state, developers can build highly scalable and extensible systems. When implementing CQRS, consider using an **event-driven architecture** to maximize the benefits of both approaches.

4. Use Command and Query Handlers

Command and query handlers are essential components in CQRS applications. **Command handlers** process incoming commands and update the application’s state, while **query handlers** retrieve data in response to queries. By properly designing and implementing these handlers, developers can ensure the smooth flow of commands and queries throughout the application.

5. Employ Asynchronous Processing

CQRS applications often handle a large volume of commands, queries, and events. To ensure optimal performance, it is recommended to employ asynchronous processing techniques. By leveraging asynchronous operations, developers can improve scalability, responsiveness, and resource utilization.

Best Practices

In addition to the patterns mentioned above, there are several best practices to follow when implementing CQRS in .net core:

• Design your application around a domain-driven approach to ensure a clear separation of concerns and maintainability.
• Apply appropriate caching techniques to optimize read operations and reduce the load on the underlying data store.
• Ensure data consistency by using transactional boundaries when modifying multiple aggregates within a command.
• Implement error handling strategies to handle failures gracefully and provide meaningful feedback to users.
• Thoroughly test your application, including unit testing of individual components and integration testing to verify the interactions between different parts of the system.

Testing and Debugging CQRS Applications

When developing CQRS applications in .net core, thorough testing and effective debugging are essential for ensuring the reliability and performance of your application. This section will explore strategies, techniques, and tools that can aid in the testing and debugging process, allowing you to catch and resolve issues early on.

Unit Testing

Unit testing plays a crucial role in verifying the correctness of individual components within your CQRS application. By writing comprehensive unit tests for command handlers, query handlers, and event handlers, you can validate the behavior and logic of these components in isolation. This helps identify any issues or bugs that may arise from improper implementation or unexpected interactions.

Example of a unit test for a command handler:

public void Handle_CreateOrderCommand_ReturnsTrue()
{
    // Arrange
    var command = new CreateOrderCommand();
    var handler = new OrderCommandHandler();

    // Act
    var result = handler.Handle(command);

    // Assert
    Assert.True(result);
}

Integration Testing

Integration testing is crucial for validating the interactions and behavior of multiple components working together in your CQRS application.

By simulating real-world scenarios and testing the integration between command handlers, query handlers, and event handlers, you can ensure the correctness and integrity of your application’s overall functionality.

Example of an integration test for a command handler and a query handler:

public void Handle_CreateOrderCommand_UpdatesOrderQuery()
{ // Arrange var context = new TestDbContext();
var command = new CreateOrderCommand(); var commandHandler = new OrderCommandHandler();
 var queryHandler = new OrderQueryHandler(context);
// Act commandHandler.Handle(command); var result = queryHandler.Handle(orderId);
// Assert Assert.NotNull(result); Assert.Equal(orderId, result.Id); }

Debugging Techniques

When debugging a CQRS application, it is important to have a clear understanding of the flow of commands, queries, and events. One effective technique is to log the execution and handling of these messages at various stages of the application. This allows you to trace the execution path and identify any unexpected behavior or issues that may arise.

Additionally, leveraging debugging tools provided by .net core, such as breakpoints and step-by-step debugging, can greatly assist in isolating and resolving issues within your CQRS application.

Testing and Debugging Tools

To streamline the testing and debugging process, several tools and frameworks are available for CQRS applications in .net core. These tools offer features such as mocking, code coverage analysis, and test automation, making it easier to write robust tests and identify potential issues.

• xUnit – A popular unit testing framework that provides a simple and elegant syntax for writing unit tests.
• Moq – A mocking library that allows you to create and configure mock objects for testing.
• Coverlet – A code coverage analysis tool that helps identify areas of your codebase that are not adequately covered by tests.
• TestHost – A test hosting framework that facilitates integration testing by providing a lightweight and isolated test environment.
• Visual Studio Debugger – The built-in debugger in Visual Studio that offers a range of powerful debugging features for .net core applications.

By utilizing these tools and techniques, you can ensure the quality, reliability, and performance of your CQRS applications in .net core.

Conclusion

CQRS is a powerful architectural pattern that can greatly enhance the performance and scalability of .net Core applications. By adopting CQRS and implementing the discussed techniques, developers can build applications that are more robust, scalable, and maintainable. We encourage you to explore and implement CQRS in your own applications, ensuring a future-proof and efficient architecture.
